Introduction
Micro/Nano Bubbles
Smaller bubbles allow for:
-Better gas-water mixture
-Increased contact area with bacteria
*Example: A bubble with a diameter of 2mm can be divided into one trillion (1012) bubbles with a diameter of 0.2 microns. Contact area will increase from 12.56mm2to 125,600mm2, a 10,000x increase.
Ozone-Infused Micro/Nano Bubbles
Comparison of ozone depletion rate between 2 types of water (measured by ORP meter)
Ozone-Infused Micro/Nano Bubbles
Applications
Micro/Nano Bubble Applications

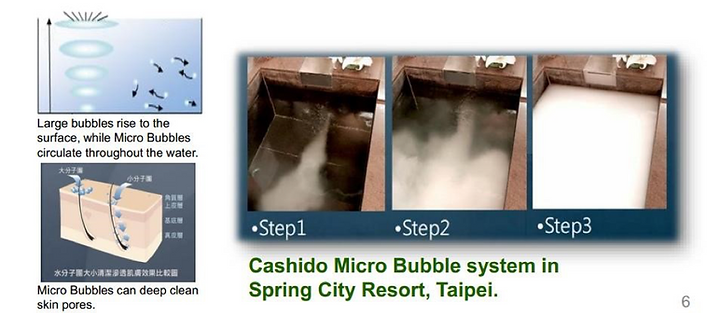

O2 and O3 bubbles – for homes, hotels, restaurants, spas, farms, garden, pools & ponds
• Cleansing effect: skin pores are 20-50 μm large, Micro Bubbles are 0.2 μm and can deep clean skin pores.
• Anion creation: Micro Bubbles create over 1.2 million anions per cc. Breathing in anions helps relax the body.
The Whitewater Company Nano/Micro Bubble System in Taiwan Spring City Resort, Taipei
Air Micro Bubbles – Birds Nest Washing in South East Asia
• Temperature control system: Maintains a constant pre-set temperature to avoid damaging food
• Washes cup-shaped birds nest and shredded birds nest
• Multiple filtration system removes large and small impurities
• Also washes medicinal herbs, snow fungus, etc.
O3 Micro Bubbles – Turtle Shell Washing
• Quick bleaching and removal of foul odor
• 800L Micro Bubble tank. Shells are placed in a rotating barrel that ensures total cleaning and drip-dries the shells
• 5 g/hr ozone generation
O3 Micro Bubbles – Agricultural Washing, Hong Kong Polytechnic University
• Moveable 03 Micro Bubble spray unit used to remove pesticides.
CO2 Micro Bubbles – Agricultural Irrigation, Miaoli Agricultural Research Station
• CO2 dissolved into water through Micro Bubbles which creates carbonic acid
• By measuring the pH we can observe the change in CO2 density.
pH curve for a 750L tank of water after 50 minutes of use
CO2 Micro Bubbles – Agricultural Irrigation, Miaoli Agricultural Research Station
• Daily from 9:00 to 4:00 CO2 water was sprayed for 5 minutes. Before spraying, the Micro Bubble system was first operated for 25 minutes to increase the CO2 density
• Plants showed strong growth because of this.

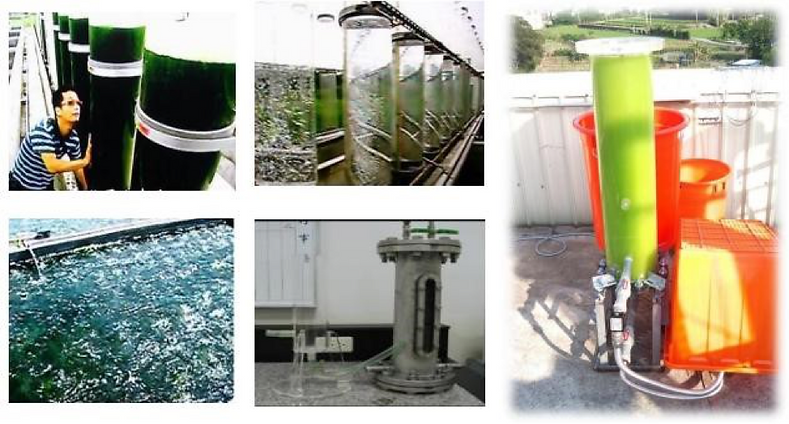

CO2 Micro Bubbles – Seaweed growth, ITRI Green Energy and Environmental Research Laboratories
• Two economic benefits of raising seaweed: (1) creation of biodiesel (2) creation of health foods.
• Seaweed are very small and are first incubated in a tank infused with CO2 before being moved outside to grow.

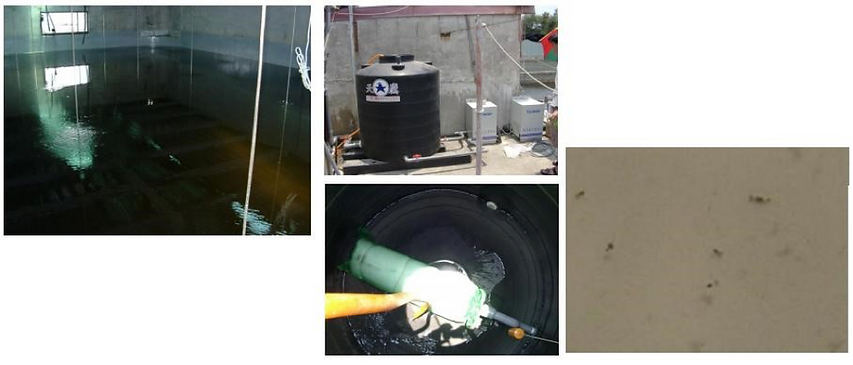

O2 Micro Bubbles – Biotank applications, food processing
-
The biotank mycelium requires large amounts of air to maintain the oxygen level in water. The tank is half-filled with air every minute.
-
Micro Bubbles increase the amount of air dissolved into the water and is a new way to raise beneficial bacteria.
O2 and O3 Micro Bubbles – Sea bass farming in Pingdong, Taiwan
-
Sea bass are a high-value fish and their constant growth affects company profits
-
Using Micro Bubbles and pure oxygen we were able to control the amount of oxygen in the water and it’s oxidization rate, creating a strong growth environment for the fish
O2 Micro Bubbles – “Fish Papa” Fishery System
Example:
-
“Fish Papa” raises high-value fish
-
Micro/Nano Bubbles were used to improve the low oxygen concentrations in the water. Micro Bubbles increased dissolved oxygen levels to a steady 6 ppm.
-
With the addition of pure oxygen, dissolved oxygen levels increased to over 7 pmm.
World’s Largest Micro Bubble Screen – Taichung, Taiwan
The Whitewater Company system was used to turn a 150,000L pond of water white for Taiwan's centennial celebration.
Eco-SIP
Introducing Eco-SIP
A renewable food safety solution applicable from farm, to factory to fork.
